GR716B-MIDI

Status:

Development

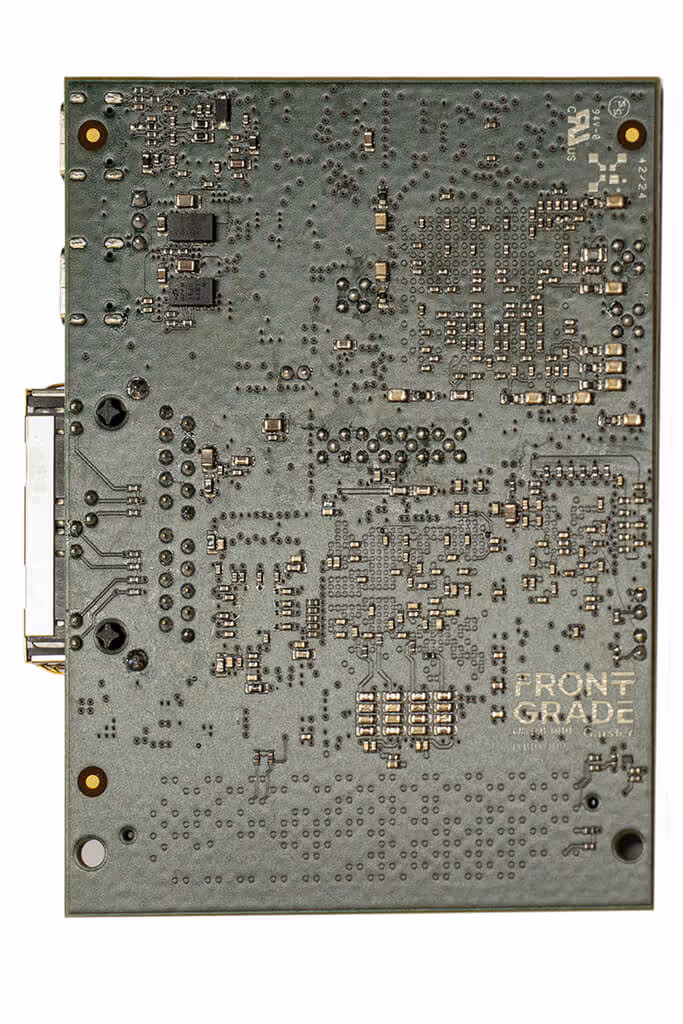

Compact evaluation platform for the GR716B mixed-signal rad hard microcontroller and the CertusPro-NX FPGA.

Contact us Documentation and downloads Ordering information

Overview

‍Learn more about the GR716B mixed signal microcontroller

Architecture

Fault tolerance

Key Tech Spec

Target technology support

Evaluation boards

Development Kit

Licensing

Software

Tools

Block diagram

Related project

Supported Hardware

Configuration

Reference Design

Other resources

Detailed features

Small form factor (7x9.5 cm)

GR716B Microcontroller on-board interfaces:

1x Ethernet
1x SPI (connected to the FPGA configuration port)
1x Spacewire to FMC+ connector
1x SpaceWire to FPGA
16MB parallel MRAM
512Mb SPI flash
2 x ADC to on-board MMCX connector
1 x DAC channel to on-board MMCX connector
1 x on board thermistor
41 x GPIO connected to FMC+ connector

CertusPro-NX FPGA on-board interfaces:

COTS variant of the radiation-tolerant CertusPro-NX-RT FPGA
1 x Ethernet
4 x SerDes to FMC+ connector
23x LVDS pairs to FMC+ connector
30x 3V I/O to FMC+ connector
1GB DDR3
512Mb SPI flash
4x Analog channels to on-board MMCX connector

‍

Ordering information

The GR716-MIDI is provided as a time-limited, free-of-cost loaner, usually three months. When loaned, the board is supported by the evaluation version of the GRMON debugger.

Downloads

File

Category

Revision

Date

Access

GR716B-MIDI Board User’s Manual

Data sheet and user's manual

1.0

2026-06-12

Free download

Password/Contact us
