GR-AVANTX-MINI

Status:

Available

Compact evaluation platform for the GRLIB IP library and the Avant-X high-speed mid-range FPGA.

Overview

Avant-X FPGA

‍‍16nm FinFET FPGA, low power consumption
Configuration and embedded memories with SECDED

GRLIB IP library

The GRLIB IP library includes support for the AVANT-X FPGAs and provides a wide collection of IP cores for processors,interfaces, cryptography and
memory control. See www.gaisler. com/grlib for further information.

‍

Architecture

Fault tolerance

Key Tech Spec

Target technology support

Evaluation boards

Development Kit

Licensing

Software

Tools

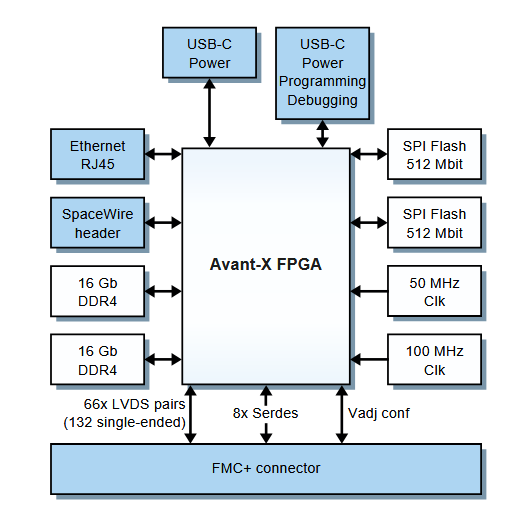

Block diagram

Related project

Supported Hardware

Configuration

Reference Design

Other resources

Detailed features

Small form factor (7x9.5 cm)
Avant-X FPGA (LAV-AT-X70)
50 and 100 MHz input clocks
2x USB-C connectors for power, programming, communication and debugging
1x Gigabit Ethernet
1x Spacewire-capable header
512 Mbit flash for FPGA configuration
512 Mbit flash for user data
2x 16 Gb DDR4
FMC+ connector including:
- 66x differential signals (132x single-ended)
- 8x SerDes lanes
- On-board Vadj configuration (1.2, 1.5, 1.8 V)
